Short Head Cone

Short Head Cone

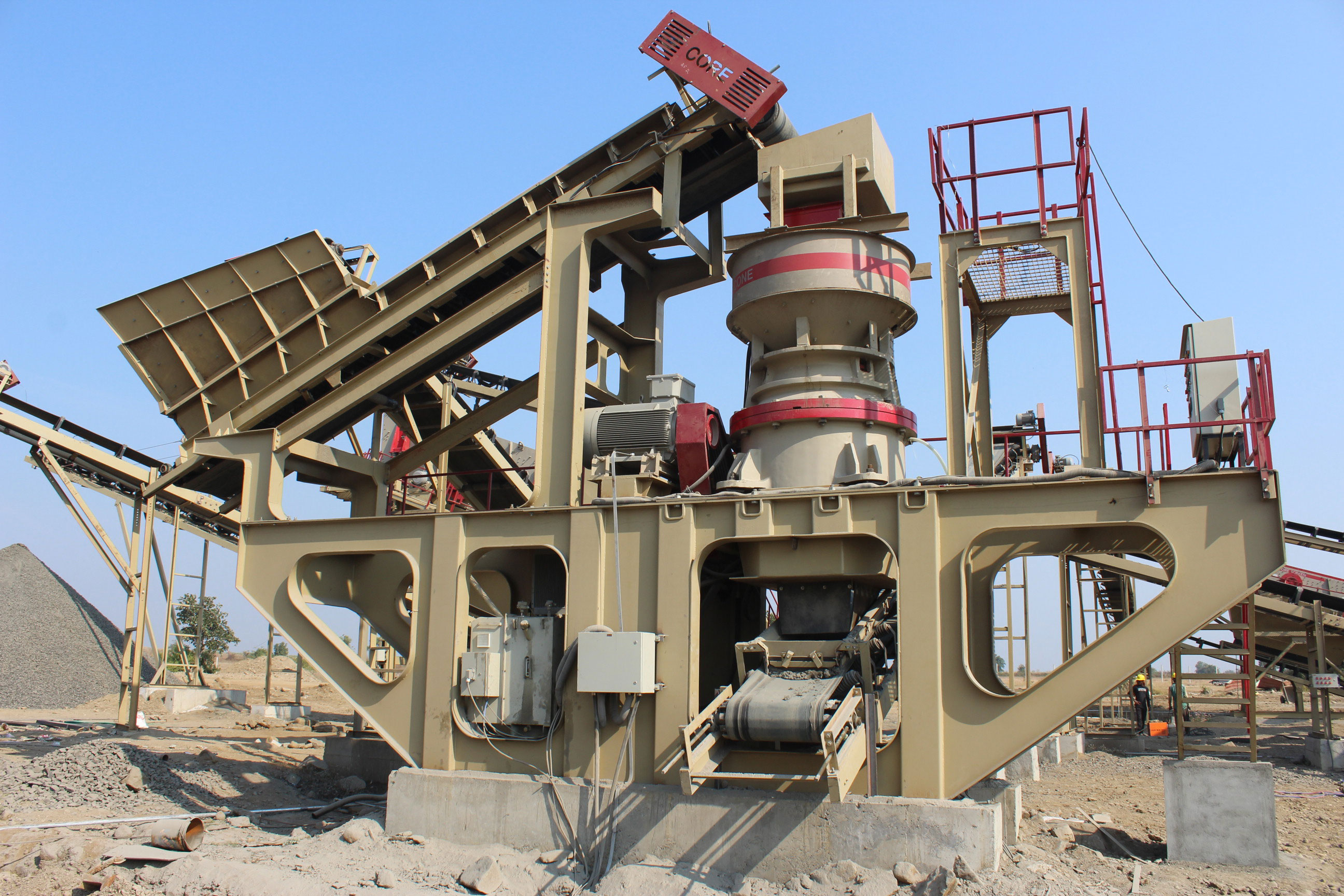

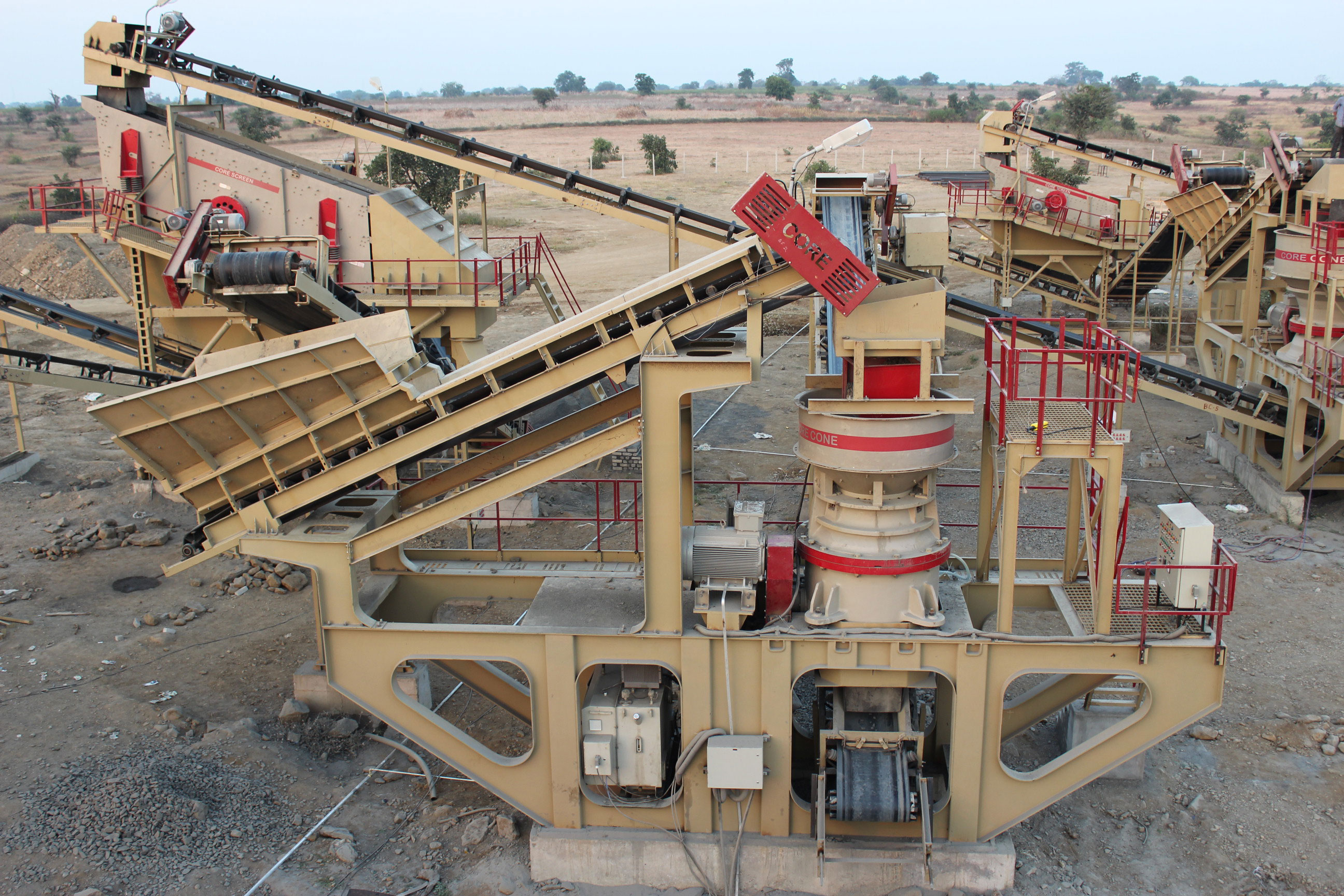

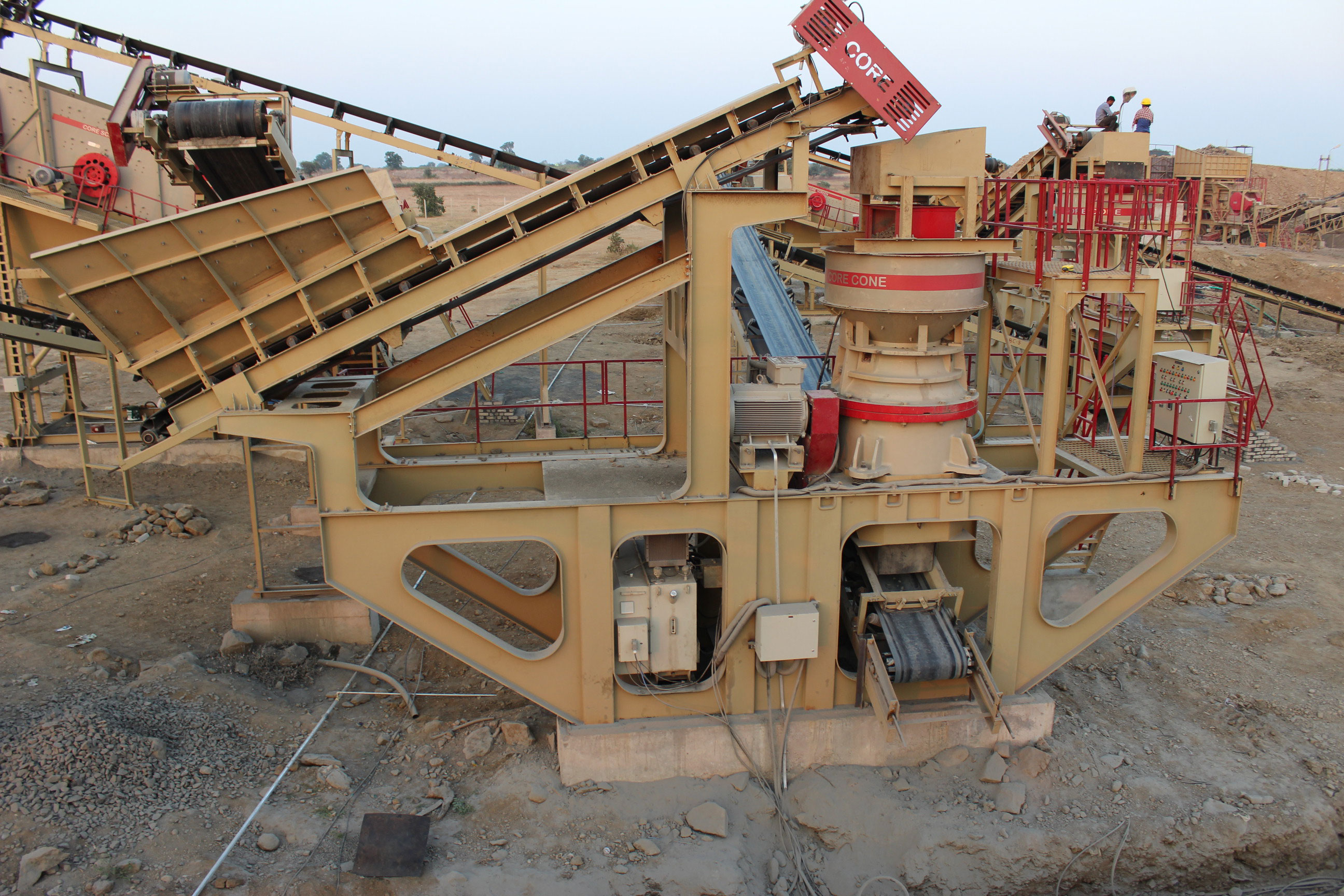

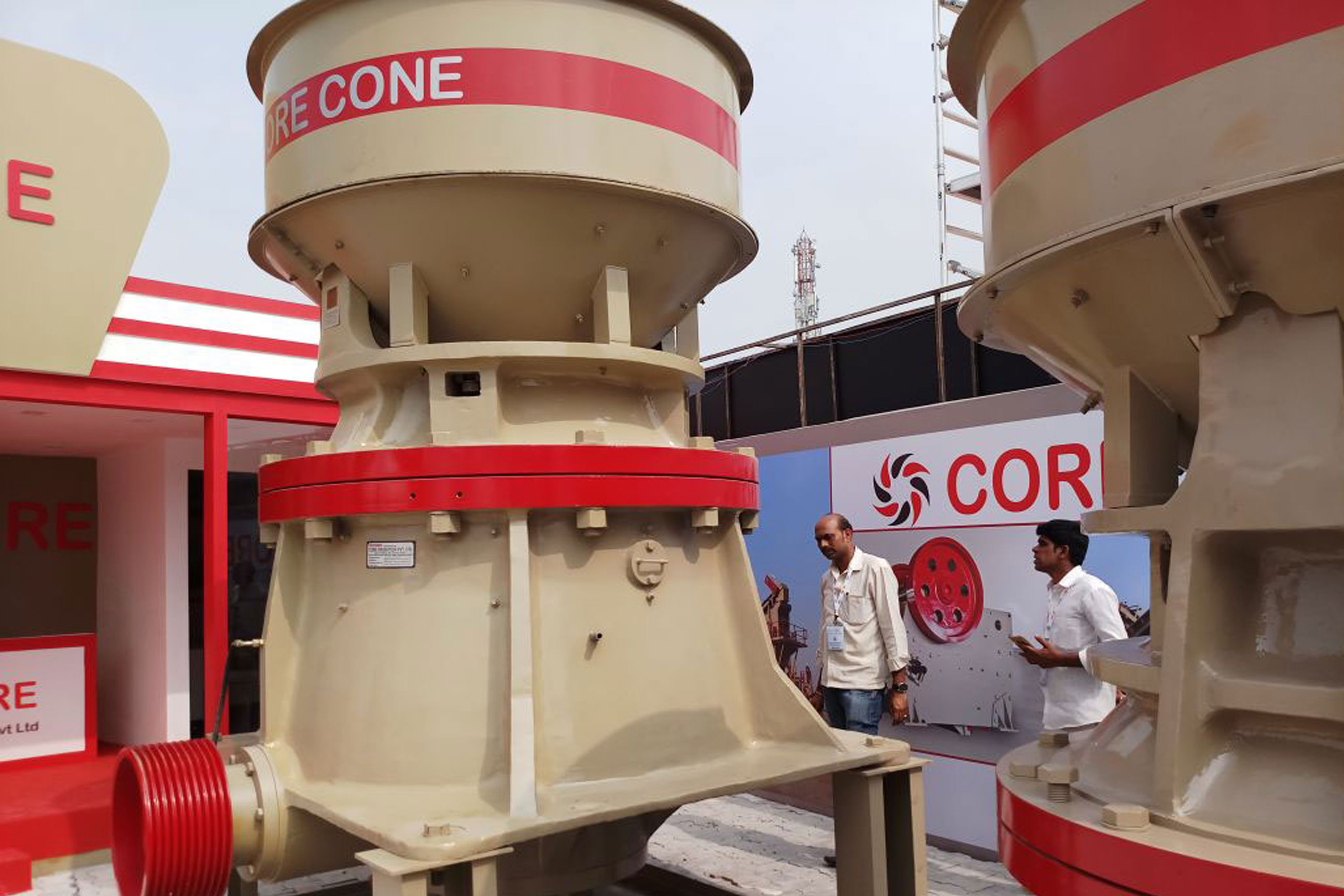

Our SH series cone crushers are designed for secondary or tertiary crushing applications

Our SH200 series can take throughputs of upto 200 TPH, whereas the larger SH400 are suited for larger applications of upto 350 TPH. The crushing chamber design is equipped to produce less flaky and well-rounded aggregates.

  • Built-in Rotary feed distributor that distributes the feed material 360° around the crushing chamber
    • Minimizes voids between larger stones thereby increasing Capacity
    • Uniform crushing increases concave, mantle wear life
  • Easy to customize output size with automatic hydraulic adjustment button

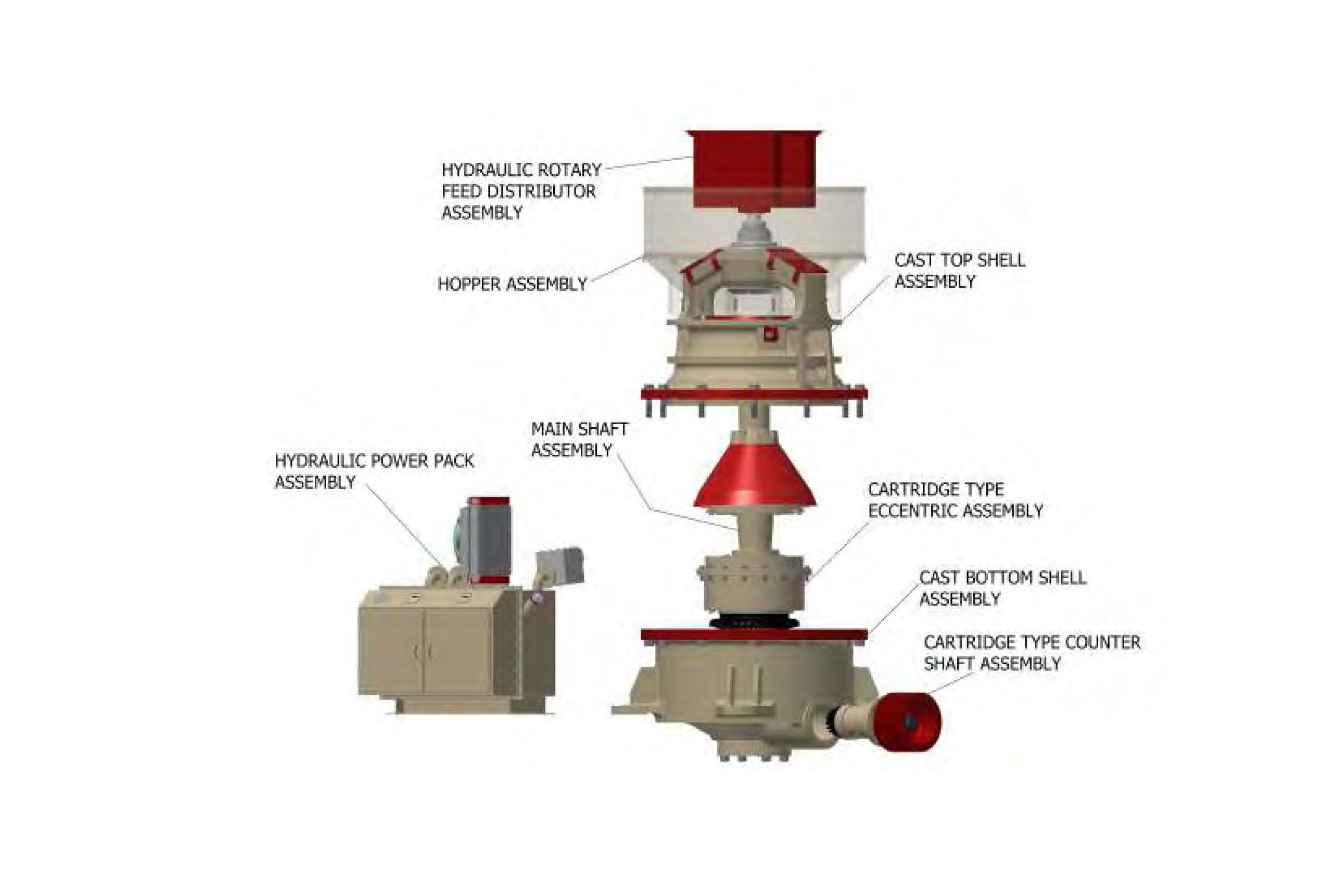

  • Combined power pack with Hydraulic CSS adjustment, tramp iron release system and automatic oil lubrication for all bearings
  • Roller bearings that reduce frictional losses and limit your power consumption while allowing more power to be available for crushing


Model SH200C SH200M SH400EC SH400C SH400M
Max.Capacity 150-230 120-180 350-450 250-400 200-350
Max Power 150kW / 200HP 150kW / 200HP 315kW / 400HP 315kW / 400HP 315kW / 400HP
Total Weight 13 T 13 T 30 T 30 T 28.5 T
